2×3 LCD Video Wall System for Control Rooms

Categories: , , , , , , ,

Description

Six Panels for Continuous Monitoring

A 2×3 wall uses six panels in three columns and two rows. It is suitable for small control rooms, security stations, dispatch points, campus management centers, and production monitoring spaces. Compared with a 2×2 layout, it provides a wider canvas and more room for independent windows, allowing a main monitoring area, map, alarm list, and operating data to remain visible.

A 2×3 LCD video wall for control rooms should follow the operator workflow. High-priority content can remain in the central area while supporting information is positioned on both sides. Preset layouts can be saved for daily monitoring, shift handover, and incident response.

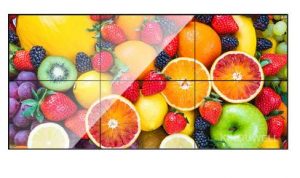

2x3 LCD video wall for control rooms front view

Viewing Distance and Information Hierarchy

Six panels do not require every source to be enlarged equally. Window size, typography, and color should follow room depth, operator positions, and the farthest viewing distance. Priority alarms need to remain clear from a distance, while detailed feeds can be enlarged when an operator investigates an event.

Bezel width, brightness, and panel consistency should be selected for the room. Control-room teams may watch the wall for long periods, so brightness and color temperature need to support recognition without creating unnecessary fatigue. Whole-wall calibration reduces visible differences between panels.

six-panel security monitoring video wall

Monitoring Platforms and Signal Control

The display can receive content from surveillance platforms, decoders, computers, servers, and conferencing equipment. The controller should support the required number of inputs together with windows, cross-panel display, scaling, roaming, and presets. For IP camera systems, the project must define whether decoding is performed by the surveillance platform, a separate decoder, or the wall controller.

Buyers should provide a source schedule, resolution list, and typical layouts. Interfaces, channel counts, and software functions can then be confirmed before production, reducing the need for temporary converters at the site.

2x3 LCD wall alarm and map layout

Safe Structure and Service Access

Six panels may use wall brackets, a floor frame, cabinets, or front service. Control rooms often contain concentrated equipment, so power circuits, UPS capacity, signal cables, network connections, and ventilation should be coordinated early. The structure must distribute panel load safely and provide adjustment for joints and flatness.

Rear-service structures need a maintenance passage. Front-service designs need enough space for the release or movement mechanism. Screens, cables, and controller ports should be numbered to make troubleshooting faster. The 2×3 LCD video wall for control rooms is verified with typical monitoring and alarm layouts before handover.

control room video wall multi-source display

Acceptance Testing and Operational Support

Acceptance should use the actual monitoring platform and typical project content. Tests should cover full-wall display, independent windows, alarm layouts, preset recall, and signal recovery. Continuous running verifies the panels, controller, and thermal design under realistic conditions.

Project documents can include connection diagrams, an equipment list, preset instructions, and troubleshooting steps. Critical spare parts and remote support arrangements can be confirmed to reduce downtime. The 2×3 LCD video wall for control rooms is verified with typical monitoring and alarm layouts before handover.

narrow bezel six-panel LCD wall detail

Configuration and Quotation Details

Please provide control-room dimensions, operator positions, source count, monitoring platform, expected layouts, mounting method, and daily operating hours. These details allow the panels, controller, support structure, and spare-parts plan for the 2×3 LCD video wall for control rooms to be configured.

If you would like to get the specification about above product, overall dimensions, control design, or project quotation, contact our sales team now.
