3×1 Vertical LCD Video Wall for Shopping Malls

Description

Fit a Tall Digital Surface into Commercial Architecture

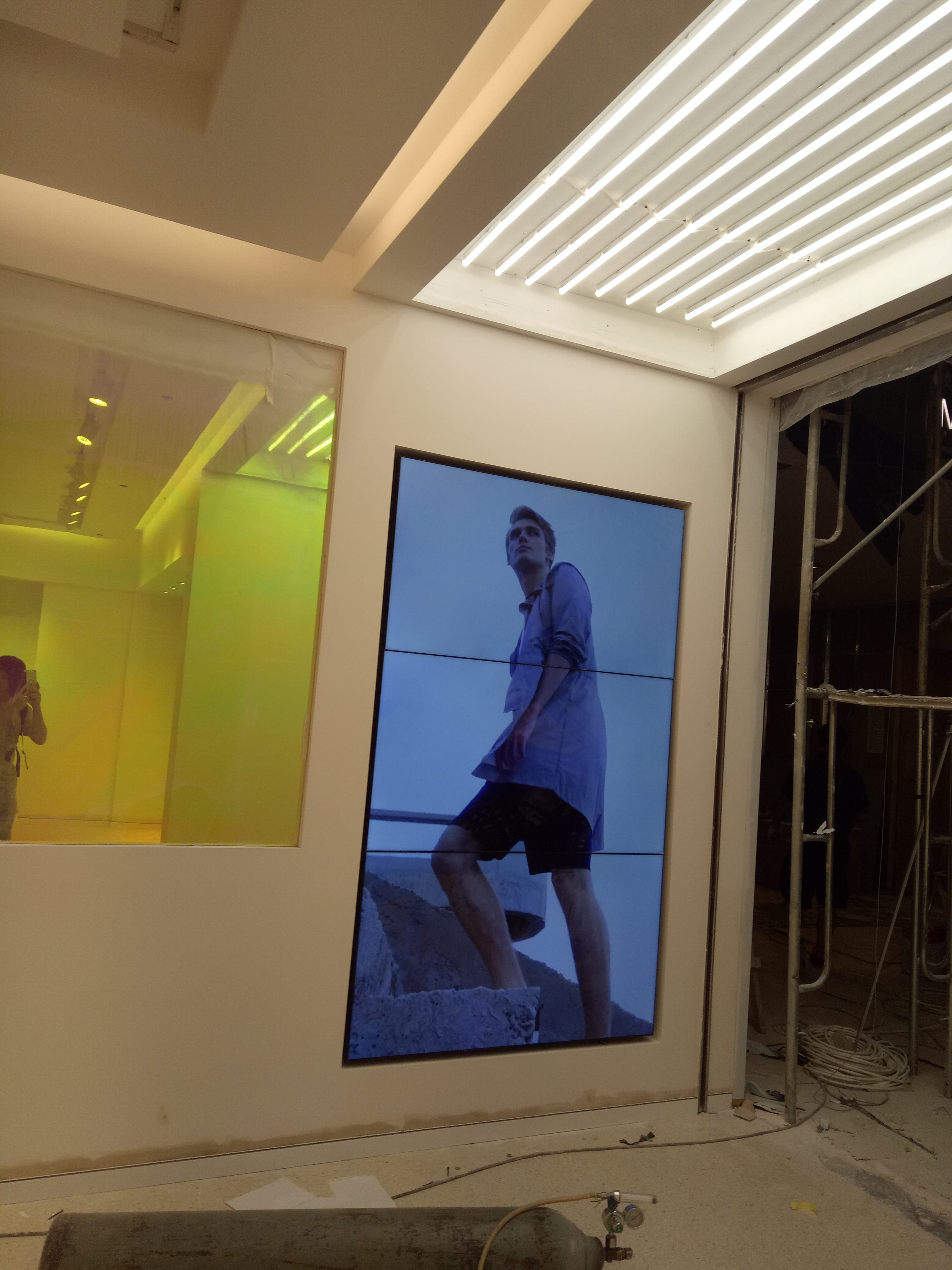

Elevator lobbies, atrium columns, cinema entrances, and restaurant waiting areas often have more height than width. A 3×1 vertical LCD video wall for shopping malls stacks three panels into a tall digital surface. The product images show retail, catering, mall, cinema, and recessed applications.

The three panels can become one continuous portrait image or three coordinated information levels. The top attracts attention from a distance, the center carries the main campaign, and the bottom provides details, directions, or a QR code.

Match Content Pace to the Location

Elevator visitors have limited viewing time, so floor direction and campaign headlines must be immediate. Restaurant guests may wait longer and can read menus or queue information. Cinema audiences can engage with schedules, trailers, and membership offers.

A 3×1 vertical LCD video wall for shopping malls should therefore use content timing that matches the location. The same hardware does not require the same playlist in every commercial zone.

Keep Important Content Clear of Two Horizontal Bezels

When the panels show one image, keep faces, prices, product edges, and QR codes away from the two bezel lines. Backgrounds and vertical motion may cross all three screens. In split mode, define a permanent purpose for the top, middle, and lower panel.

Provide the content team with the actual ratio and safe-area guides. This prevents landscape material from being stretched or cropped into an ineffective vertical composition.

Integrate the Wall with Recessed Interior Finishes

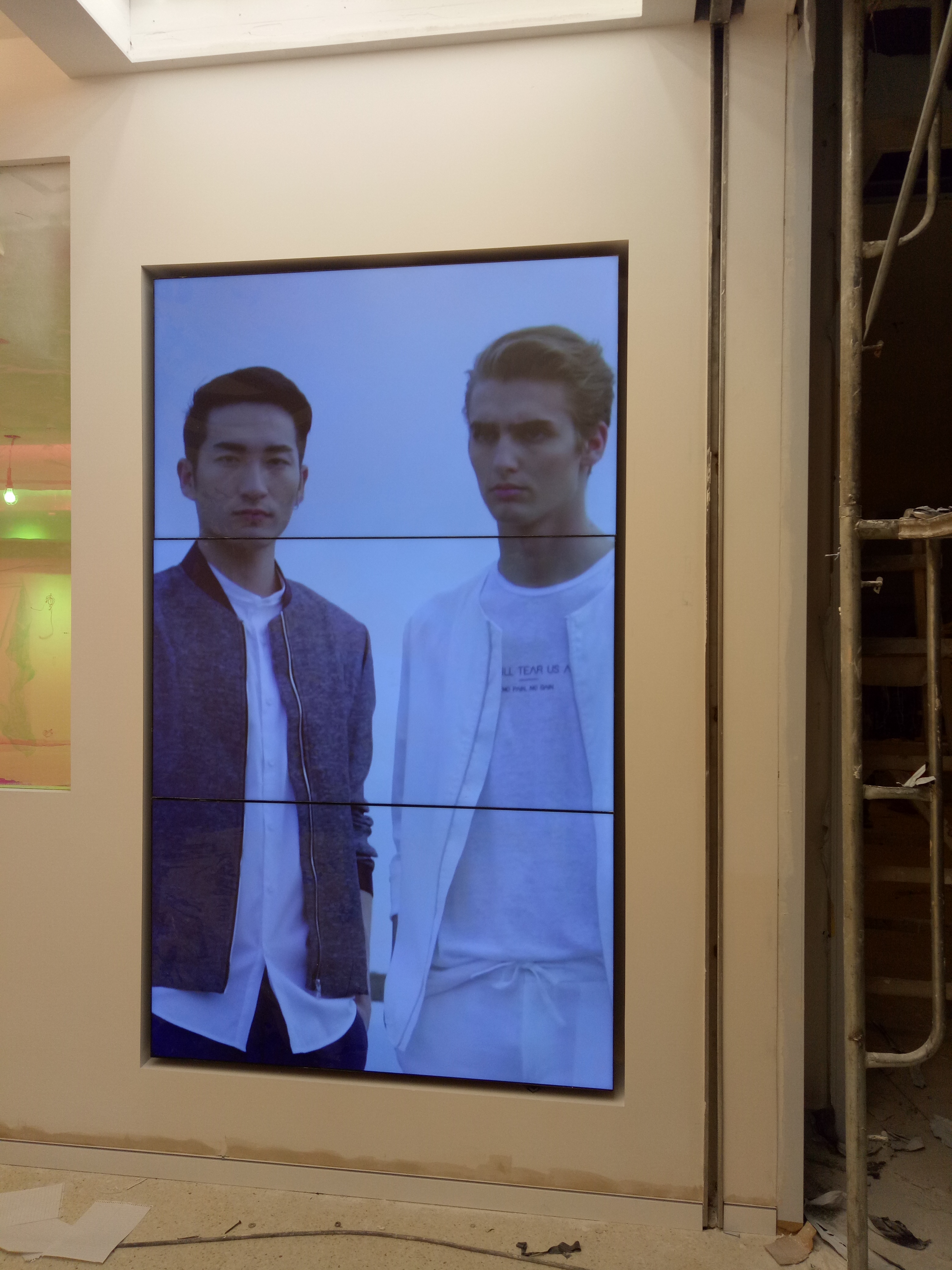

The product gallery shows recessed installation. Opening size, bracket depth, ventilation, cable access, and panel removal must be coordinated with the interior contractor. Decorative materials must not trap heat or block the top panel service route.

A 3×1 vertical LCD video wall for shopping malls also needs verified wall load and a continuous vertical center line. Customer-accessible areas should have concealed cables and a safe finished edge.

Operate and Accept the Display from the Visitor Route

Content scheduling should prevent expired campaigns from continuing after an event. Test still images, full-height video, three independent zones, timed playback, and automatic restart. Staff should receive clear artwork and update instructions.

Accept the 3×1 vertical LCD video wall for shopping malls from the entrance, walkway, elevator, and waiting position. Confirm long-distance impact, close-range reading, reflections, panel consistency, and maintenance access.

Frequently Asked Questions

How many panels form a 3×1 vertical video wall?

Three panels are stacked vertically to create one tall commercial display.

Can the three panels show a menu, advertisement, and wayfinding separately?

Yes, when the player or controller provides separate zones. Assign a stable purpose to the top, middle, and lower panels.

How is the top panel maintained?

Plan its removal direction, safe working height, and bracket movement before the wall finish is installed. Front service is useful when rear access is unavailable.

Why should landscape advertising be redesigned?

Landscape media often crops badly or leaves unused areas on a tall display. Portrait artwork made for the combined ratio uses the wall more effectively.
