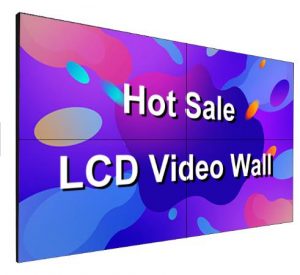

2×2 LCD Video Wall System for Meeting Rooms
Description
A Four-Panel Solution for Meetings and Briefings
A 2×2 wall combines four panels and offers a practical balance of display area, installation complexity, and budget. It can support meeting rooms, briefing areas, small monitoring rooms, training spaces, and corporate showrooms. The near-square canvas works well for presentations, video conferences, operational dashboards, and several camera feeds.
A 2×2 LCD video wall for meeting rooms should be planned around the meeting table, camera height, viewing distance, ambient light, and normal content ratio. Correct mounting height helps participants at the front and rear of the room read text and charts comfortably.
Presentation and Multi-Task Collaboration
Wall mode can show one presentation, video, or remote meeting across all four panels. Multi-window mode can keep the presenter, participants, data, and reference material visible at the same time. The controller should provide common inputs, scaling, and simple preset selection.
The display can also work with meeting PCs, wireless presentation devices, and conferencing terminals. Buyers should confirm signal resolution, interfaces, and audio requirements so the display system and collaboration equipment operate together reliably.
Bezel Placement and Viewing Comfort
The horizontal and vertical panel joints meet near the center of a 2×2 wall. Content designers should avoid placing faces, important labels, and critical icons permanently on that intersection. A narrower bezel improves continuity, while intelligent layout remains important.
Brightness should suit the meeting environment rather than copy a high-brightness lobby specification. After installation, white balance and color calibration help the four panels look consistent. Text size and chart detail should be checked from the farthest seat.
Wall Mount, Cabinet, or Front Service
A 2×2 wall may use brackets, a floor frame, cabinets, or a front-service structure. Wall mounting saves space, cabinets create a finished appearance, and front service is useful where no rear access is available. The selection must consider load capacity, ventilation, power, and cable routes.
All panels need accurate horizontal, vertical, and depth alignment. Cables should be labeled and secured without placing stress on connectors. Decorative finishing must preserve airflow and panel removal space. The 2×2 LCD video wall for meeting rooms is checked with the normal collaboration devices before handover.
Testing, Training, and Maintenance
Factory and site tests should cover full-wall content, independent windows, source switching, continuous operation, and power sequencing. Meeting-room commissioning should also use the normal computers, wireless presentation device, and conferencing terminal.
Operator training can cover preset layouts, source selection, cleaning, and basic troubleshooting. A connection diagram and equipment list make future computer or controller changes easier to manage. The 2×2 LCD video wall for meeting rooms is checked with the normal collaboration devices before handover.
Information Needed for the Meeting-Room Design
Please provide room dimensions, the farthest viewing distance, source devices, common layouts, wall conditions, and daily operating hours. These details allow the panel size, bezel, brightness, controller, and mounting structure for the 2×2 LCD video wall for meeting rooms to be selected correctly.
If you would like to get the specification about above product, overall dimensions, control design, or project quotation, contact our sales team now.
